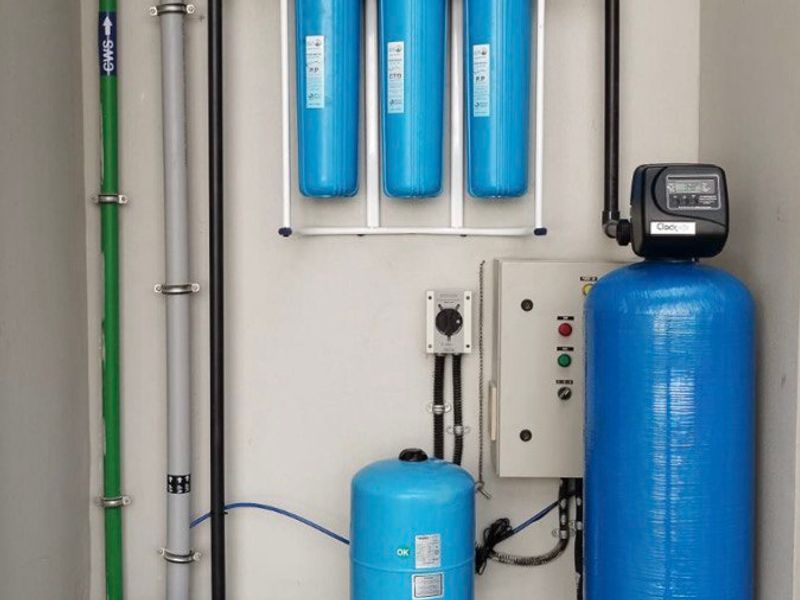

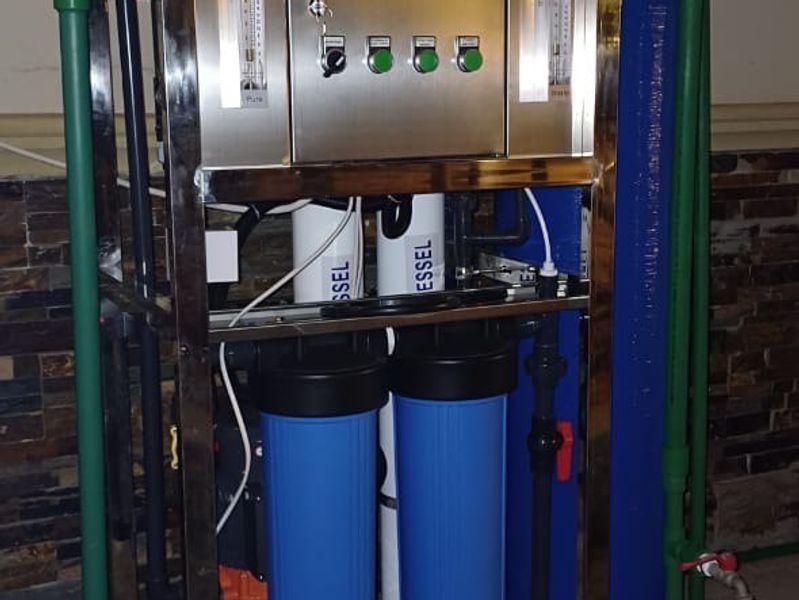

Domestic Reverse Osmosis (RO) Water Treatment System

Whole-Villa & Building Water Purification Solutions

The Domestic RO System is designed to supply clean, safe, and great-tasting water to every outlet in your home, villa, or building. Unlike point-of-use under-sink purifiers, these point-of-entry (POE) systems treat the entire incoming water supply, ensuring that every tap, shower, and appliance receives purified water.

Using a combination of pretreatment filtration, reverse osmosis membranes, and post-treatment sterilization, our systems consistently deliver water that meets drinking standards, even when starting with challenging feed water.

🔑 Key Features & Benefits

1. Comprehensive Treatment Line – Includes multimedia filtration, activated carbon(if required), softeners (if required), cartridge filters, RO unit, and UV sterilization for complete purification.
2. Whole-House Supply – Provides purified water to every tap and bathroom, unlike under-sink filters.
3. High Efficiency RO Membranes - with 99% salt rejection, producing low-TDS drinking water.
4. Custom Capacities – Systems available from 100 Gallons/Day up to 30,000+ Gallons/Day (for large villas, farms, compounds, and buildings).
5. Durable Construction – Built on SS304 / FRP frames, corrosion-resistant tanks, and industrial-grade pumps for 24/7 operation.
6. Safe & Reliable Operation – Equipped with auto-flush, pressure protection switches, conductivity alarms, flow meters, and PLC/MCC panels.
7. Post-Treatment UV – Provides microbiological safety, ensuring bacteria-free drinking water.
8. Low Maintenance – Easy filter replacements and annual membrane servicing.

⚙️ Process Flow

1. Raw Water Pump – Ensures stable feed pressure.
2. Multimedia Filter – Removes turbidity, suspended solids, silt, and sand.
3. Activated Carbon Filter – Removes chlorine, organics, pesticides, and odor.
4. Water Softener (Optional) – Reduces hardness (Ca, Mg) to protect membranes.
5. Cartridge Filtration – Final pretreatment before RO membranes.
6. Reverse Osmosis System – Core stage with high-rejection RO membranes removing dissolved salts, heavy metals, nitrates, and contaminants.
7. UV Sterilization – Final safeguard to eliminate bacteria and viruses.
8. Product Water Tank & Distribution – Purified water supplied throughout villa/building.

📊 Technical Specifications

1. Capacity Range: 100GPD up to 30,000 GPD+ (custom available).
2. Salt Rejection: ≥ 99% (depending on feed water).
3. Recovery Rate: 45–60%.
4. Filtration Rating: 0.0001 micron (RO membrane).
5. Feed Water TDS: up to 2000-8000 ppm (customizable membranes available for higher TDS).
6. Frame & Piping: SS304 frame, FRP filter housings, PVC/SS piping.
7. Post Treatment: UV sterilization .
8. Control System: Auto & manual operation, electrical protection devices, flow meters, and pressure gauges.

📍 Applications

• Residential Villas, Farms & Compounds – Clean water throughout kitchens, bathrooms, and gardens.
• Buildings & Apartments – Centralized RO for multiple families.
• Schools & Hospitals – Safe water supply for sensitive users.
• Restaurants & Cafés – Clean water for cooking and beverages.
• Commercial Offices – Central water purification for staff and visitors.

✅ Why Choose Our Domestic RO Systems?

✔ One solution for the entire villa, farm/building etc. – not just a single tap.

✔ Customizable capacity – from small homes to large estates.

✔ Advanced pretreatment – ensures long RO membrane life.

✔ Meets international drinking water standards – BOD, COD, TDS, bacteria removal.
