Description

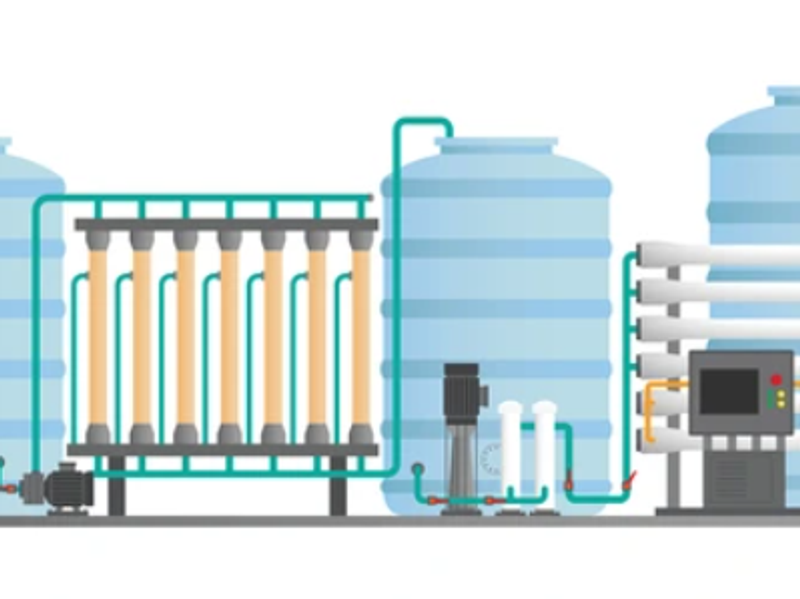

Industrial Reverse Osmosis (RO) Water Treatment Systems
Industrial RO systems are engineered to handle large-scale water purification demands across manufacturing, food & beverage, pharmaceuticals, power plants, and commercial facilities. These systems are designed to remove dissolved salts, heavy metals, organic matter, and microbiological contaminants, ensuring consistent water quality that meets industrial process requirements and international standards.
Unlike domestic RO units, industrial systems operate at higher capacities, integrate robust pretreatment, and are built for 24/7 continuous duty with automated controls and monitoring.
🔑 Key Features & Benefits
- Comprehensive Multi-Stage Treatment – Includes multimedia filtration, activated carbon, water softeners (as needed), cartridge filtration, RO membranes, and post-treatment disinfection.
- High-Capacity Design – Available from 10,000 GPD up to several million GPD depending on process requirements.
- High Recovery & Efficiency – Recovery up to 80% with optimized anti-scalant dosing and energy-efficient pumps.
- Durable Industrial Construction – Skids and frames in SS304/SS316, FRP or carbon steel tanks with epoxy lining, industrial pumps.
- Advanced Automation – PLC/SCADA controls, flow/pressure/TDS monitoring, auto-flush, CIP (clean-in-place) systems.
- Post-Treatment Flexibility – UV sterilization, chlorination, remineralization, or blending to meet process-specific water standards.
- Low OPEX – Designed for long membrane life, minimal downtime, and easy maintenance access.
⚙️ Process Flow
- Feed Water Pump – Stabilizes inlet pressure.
- Multimedia Filter – Removes suspended solids, turbidity, and silt.
- Activated Carbon Filter – Eliminates chlorine, pesticides, and organic matter.
- Water Softener / Anti-scalant Dosing – Controls scaling and hardness.
- Cartridge Filtration – Fine filtration before membrane entry.
- High-Pressure Pump – Provides required pressure for RO operation.
- Reverse Osmosis Unit – High-rejection membranes remove salts, heavy metals, and dissolved contaminants.
- Post-Treatment – UV, chlorination, pH adjustment, or remineralization depending on end-use.
- Product Water Storage & Distribution – Consistent supply for industrial processes.
- CIP System – Periodic cleaning of membranes to restore performance.
📊 Technical Specifications
Capacity Range: 10,000 GPD – 5,000,000 GPD+
Salt Rejection: ≥ 99% (with high-rejection membranes)
Recovery Rate: 50–80% (feed-water dependent)
Filtration Rating: 0.0001 micron (RO membrane)
Feed Water TDS: up to 45,000 ppm (seawater RO available)
Frame & Piping: SS304/SS316 skids, FRP/SS filter housings, uPVC/SS piping
Control System: PLC/SCADA with online monitoring, alarms, and auto-protection features
Optional: Energy recovery devices for seawater RO
📍 Applications
- Power Plants – Boiler feedwater treatment
- Pharmaceuticals & Laboratories – Ultra-pure process water
- Food & Beverage – Ingredient water, beverage formulation, process cleaning
- Textile & Dyeing – Soft, low-TDS water for consistent dyeing quality
- Chemical & Petrochemical – Process water, cooling towers
- Hospitality & Commercial – Centralized purified water supply
- Desalination Plants – Brackish and seawater desalination for municipal/industrial use
✅ Why Choose Our Industrial RO Systems?
✔ Engineered with globally proven design principles, adapted to local needs
✔ Custom-engineered for site-specific feed water and process needs
✔ Extended membrane life through optimized pretreatment
✔ Energy-efficient design with low lifecycle costs
✔ Full automation for safety, reliability, and ease of operation
✔ Compliance with international standards (WHO, USEPA, ASTM, ISO)
